Tuners

0.8 - 20.0 GHz Pre-Channelized Dual Conversion Selectable IF Bandwidth Miniature Tuner

Features

    • TYPE 1 TUNER
    • 70 dB DYNAMIC RANGE
    • 8 PRECONVERSION CHANNELS
    • 50 dB SPURIOUS FREE RANGE
    • 5 dB CONVERSION GAIN
    • 60 dB CHANNEL TO CHANNEL ISOLATION
    • 1 GHz IF OUTPUT
    • +/- 25MHz, +/- 125MHz, +/- 250MHz INSTANTANEOUS BW

Description

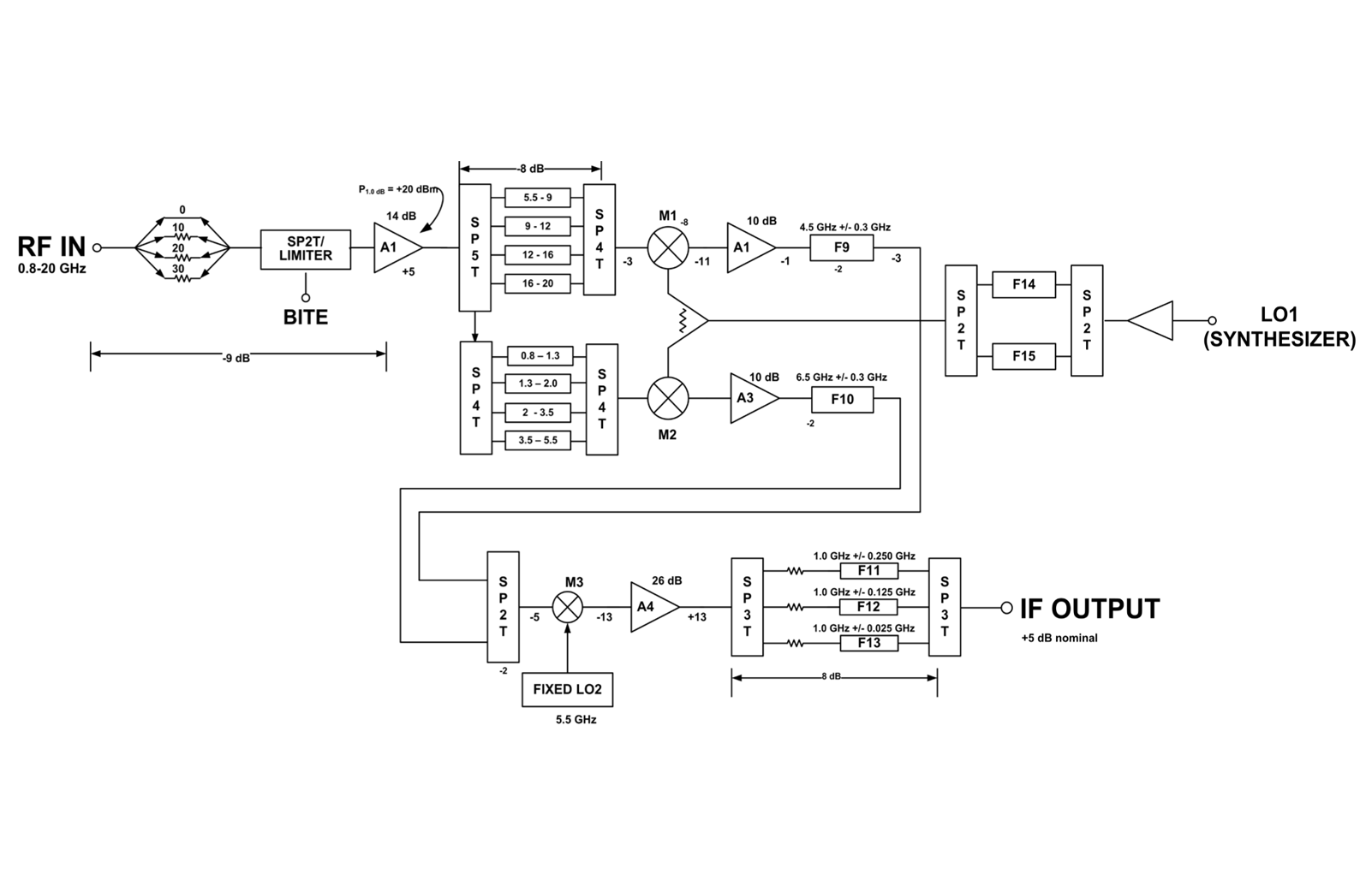

AKON’s A20-MH260 is a 0.8 to 20.0 GHz microwave tuner of the classical type. It features a 60 dB dynamic range expander, an integrated input switch/limiter and launches through the LNA.  The unit features an 8-channel filter bank preselector which eliminates received image frequencies. The unit features dual conversion steps to a final IF output frequency of 1 GHz. Output bandwidth is also selectable between 550 and 50 MHz. Conversion gain is 5 dB, Dynamic range extends to -70 dBm, of which the first 50 dB is spurious-free. LO sources are externally applied.

SPECIFICATIONS
Model Number A20-MH260
Frequency Range(GHz) 1 to 20 (min)
IF Output (GHz) 1
IF 1 dB Bandwidth (MHz) 500, 250, 50
Conversion Gain (dB) 5 (nom)
Input 1 dB Compression Point (dBm) -10 (min)
Input Instantaneous Dynamic Range (dB) 60 (-70 to -10 dBm)
Input Power for 0 dB SNR in 500 MHz BW (dBm) -70
Spurious @ -24 dBm Input (dBc) -50 (min)
Number of Pre-select Bands 8
Band 1 Pre-select Tuning Bands (GHz) : 0.8 - 1.3
Pre-select Filters 1.0 dB BW (GHz) : 0.775 - 1.325
Overlap : +/- 25 MHz
Band 2 Pre-select Tuning Bands (GHz) : 1.3 - 2.0
Pre-select Filters 1.0 dB BW (GHz) : 1.275 - 2.025
Overlap : +/- 25 MHz
Band 3 Pre-select Tuning Bands (GHz) : 2.0 - 3.5
Pre-select Filters 1.0 dB BW (GHz) : 1.875 - 3.625
Overlap : +/- 125 MHz
Band 4 Pre-select Tuning Bands (GHz) : 3.5 - 5.5
Pre-select Filters 1.0 dB BW (GHz) : 3.375 - 5.625
Overlap : +/- 125 MHz
Band 5 Pre-select Tuning Bands (GHz) : 5.5 - 9.0
Pre-select Filters 1.0 dB BW (GHz) : 5.25 - 9.25
Overlap : +/- 250 MHz
Band 6 Pre-select Tuning Bands (GHz) : 9.0 - 12.0
Pre-select Filters 1.0 dB BW (GHz) : 8.75 - 12.25
Overlap : +/- 250 MHz
Band 7 Pre-select Tuning Bands (GHz) : 12.0 - 16.0
Pre-select Filters 1.0 dB BW (GHz) : 11.75 - 16.25
Overlap : +/- 250 MHz
Band 8 Pre-select Tuning Bands (GHz) : 16.0 - 20.0
Pre-select Filters 1.0 dB BW (GHz) : 15.75 - 20.0
Overlap : +0/- 250MHz
Pre-select Band Switching Speed 100 ns (max)
Window Over Frequency @ 25°C +/- 2.5 dB (max)
Noise Figure (dB) 16 (max)
Gain Variation vs. Temp (dB) +/- 2.0 (max)
Dynamic Range Extender (dB) 10, 20, 30 (selectable)
LO1 Input (SMA-F Connector) Variable; (not included)
LO2 Input (SMA-F Connector) Fixed; (not included)
Power Input +15V (<1.5A), -15V (<-0.4A)
Operating Temperature (°C) 0 to 50
Control Interface (TTL) Pre-selector band control and Dynamic range extender control wire integrated in a same connector (the mating connector with wire shall provide)
Dimensions (Inches) 7.6” × 4.9” × 1.1” (max)
