RF & Microwave Detectors

RF & Microwave Detectors

Features

    • Tunnel, Schottky, and Zero Bias Schottky
    • Excellent Sensitivity, TSS of - 50 dBm
    • K Factor Ranges from 700 to 4000 mV/dB
    • Wide Band Frequency Coverage
    • Compact  and Ruggedized Packaging
    • Package Options: Drop-In, SMA, & SMP

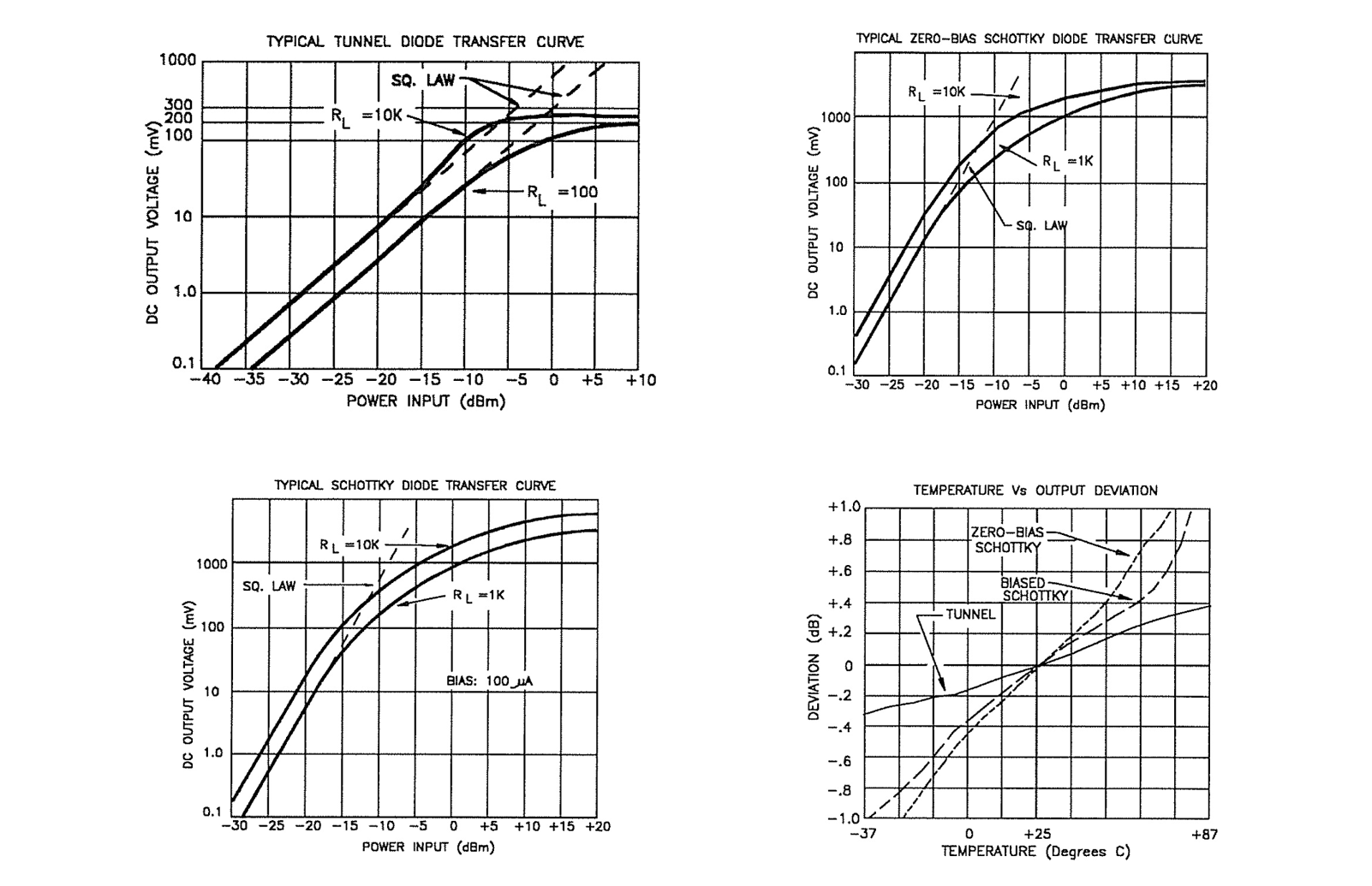

Description

AKON’s product line of RF & Microwave Detectors operate over a frequency range of 2 to 18 GHz. All of the designs utilize thin film circuitry with DC bias inductors and bypass chip capacitors. This design construction offers excellent electrical repeatability and over temperature electrical performance.

AKON products are designed to withstand the demanding environments of Military, Space and Industrial applications. Our compact and ruggedized products are designed to handle stringent mechanical shock/vibrations, temperature cycling, altitude and temperature extremes..

Reliability is a key feature of AKON products and to ensure this we perform ESS testing on all of our products. AKON offers an off-the-shelf screening option called its “H“ series, per Mil-STD-883 level B that is available on all of its RF & Microwave Components. For custom electrical, mechanical, and screening options, please contact AKON Sales: sales@akoninc.com (or) 408-432-8039.

SPECIFICATIONS
Model Number Frequency Range(GHz) K Factor (mV/dB) T.S.S(dBm) Flatness (± dB) VSWR Video Resistance) (ohms) Video Capacitance (pF) Max Input Power* (dBm) Pkg. EAR99/ ITAR Select Product
A43-MX001 2-6 700 -49 +/- 0.4 2.3:1 120 20 +17 Drop-In EAR99
A43-MX002 2-6 700 -49 +/- 0.4 2.3:1 120 20 +17 SMA EAR99
A43-MX003 2-6 700 -49 +/- 0.4 2.3:1 120 20 +17 SMP EAR99
A43-MX004 6-18 600 -49 +/- 0.5 2.5:1 100 15 +17 Drop-In EAR99
A43-MX005 6-18 600 -49 +/- 0.5 2.5:1 100 15 +17 SMA EAR99
A43-MX006 6-18 600 -49 +/- 0.5 2.5:1 100 15 +17 SMP EAR99
A43-MX007 2-18 500 -49 +/- 0.7 2.7:1 100 15 +17 Drop-In EAR99
A43-MX008 2-18 500 -49 +/- 0.7 2.7:1 100 15 +17 SMA EAR99
A43-MX009 2-18 500 -49 +/- 0.7 2.7:1 100 15 +17 SMP EAR99
A43-MX010 2-6 2000 -52 +/- 0.4 3.0:1 380 20 +20 Drop-In EAR99
A43-MX011 2-6 2000 -52 +/- 0.4 3.0:1 380 20 +20 SMA EAR99
A43-MX012 2-6 2000 -52 +/- 0.4 3.0:1 380 20 +20 SMP EAR99
A43-MX013 6-18 1700 -51 +/- 0.5 3.5:1 380 10 +20 Drop-In EAR99
A43-MX014 6-18 1700 -51 +/- 0.5 3.5:1 380 10 +20 SMA EAR99
A43-MX015 6-18 1700 -51 +/- 0.5 3.5:1 380 10 +20 SMP EAR99
A43-MX016 2-18 1500 -50 +/- 0.7 4.0:1 380 10 +20 Drop-In EAR99
A43-MX017 2-18 1500 -50 +/- 0.7 4.0:1 380 10 +20 SMA EAR99
A43-MX018 2-18 1500 -50 +/- 0.7 4.0:1 380 10 +20 SMP EAR99
A43-MX019 6-18 2200 -49 +/- 0.5 4.0:1 2000 10 +20 Drop-In EAR99
A43-MX020 6-18 2200 -49 +/- 0.5 4.0:1 2000 10 +20 SMA EAR99
A43-MX021 6-18 2200 -49 +/- 0.5 4.0:1 2000 10 +20 SMP EAR99
A43-MX022 2-18 1700 -49 +/- 0.7 4.0:1 2000 10 +20 Drop-In EAR99
A43-MX023 2-18 1700 -49 +/- 0.7 4.0:1 2000 10 +20 SMA EAR99
A43-MX024 2-18 1700 -49 +/- 0.7 4.0:1 2000 10 +20 SMP EAR99
Note: You can select different models and submit inquiry or custom quote request with help of different options available at bottom of page.

AKON, Inc. and it’s affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
All products are measured in 50 - ohm system, at +25° C. The units will operate over -54° to +85° C with slight performance degradation.

Customer Program

JPL - MIRO (Complex Integrated Microwave Assembly)
JPL - MLS (complex Converter Assembly)
AEG - Germany FL-1800 (Electronic Counter Measure)
CSIST - Shipboard Radar Update
Raytheon - SLQ - 32
BAE/Sanders - USM - 406C (Test Set)
BAE/Sanders - USM - 464 (Test Set)
US Navy - SAR - Synthetic Aperture Radar TR Modules
NAVSEA/Envisioneering - SEAPORT-e Program (Tuners)
Lockheed Martin - AEGIS
SEARAM - Rolling Airframe Missile
Brazilian Navy
DSTO Australia
Anaren - Canadian F18
Ford - HARM Missile Seeker
ITT - ASPJ (Airborne Self Protect Jammer) IDECM (Integrated Digital Electronic Counter)
Japan - FSX, Several RWR (Radar Warning Receiver)
BAE/Loral - ALR - 56C (F15 Fighter) RWR
BAE/Loral - ALR - 56M (F16 Fighter) RWR
BAE/Loral - ALQ - 131 (Pod Mounted Jammer)
Turkish F-16 - Front End Converters SPEWS II
DRS - Euro Fighter Test Set
BAE/Loral - ALR - 56V - F15 (RWR Update)
Northrop Grumman - JSTARS
Northrop Grumman - ALQ - 188 (Electronic Attack Training Pod)
Raytheon - ALQ - 142 (LAMPS Helicopter)
Electronica (Italy)
Government of India - Aircraft Radar
DSTO (Australia)
