Compact Multiplexer Filters

Features

    • Variety of Frequency Ranges Available
    • Low Passband Insertion Loss ≤ 1.5 - 4.5 dB typ
    • High Skirt Selectivity ≥ 45 - 60 dB typ
    • Compact Packaging Options
    • EAR 99 Export Classification

Description

AKON has developed a new line of Narrow Band Multiplexer Filters covering a variety of Bands over the 1 to 18 GHz frequency range. AKON offers a standard line of 2, 3, 4 and 5 channel filters, but also can provide custom design for specific customer requirements. These filters come in Drop-In and SMP packaging options to fit the specific applications of your system.

AKON’s design techniques and construction provides superior electrical performance with regard to passband insertion loss, high skirt selectivity and predictable temperature performance.

AKON products are designed to withstand the demanding environments of Civillian, Military, and Space applications. Our compact and ruggedized products are designed to handle stringent mechanical shock/vibrations, temperature cycling, altitude and temperature extremes.

Reliability is a key feature of AKON products and to ensure this we perform ESS testing on all of our products. AKON offers an off-the-shelf screening option called its “H” series, per MIL-STD-883 level B that is available on all of its RF & Microwave Components. For custom electrical, mechanical, and screening options, please contact AKON Sales: sales@akoninc.com (or) 408-432-8039.

SPECIFICATIONS

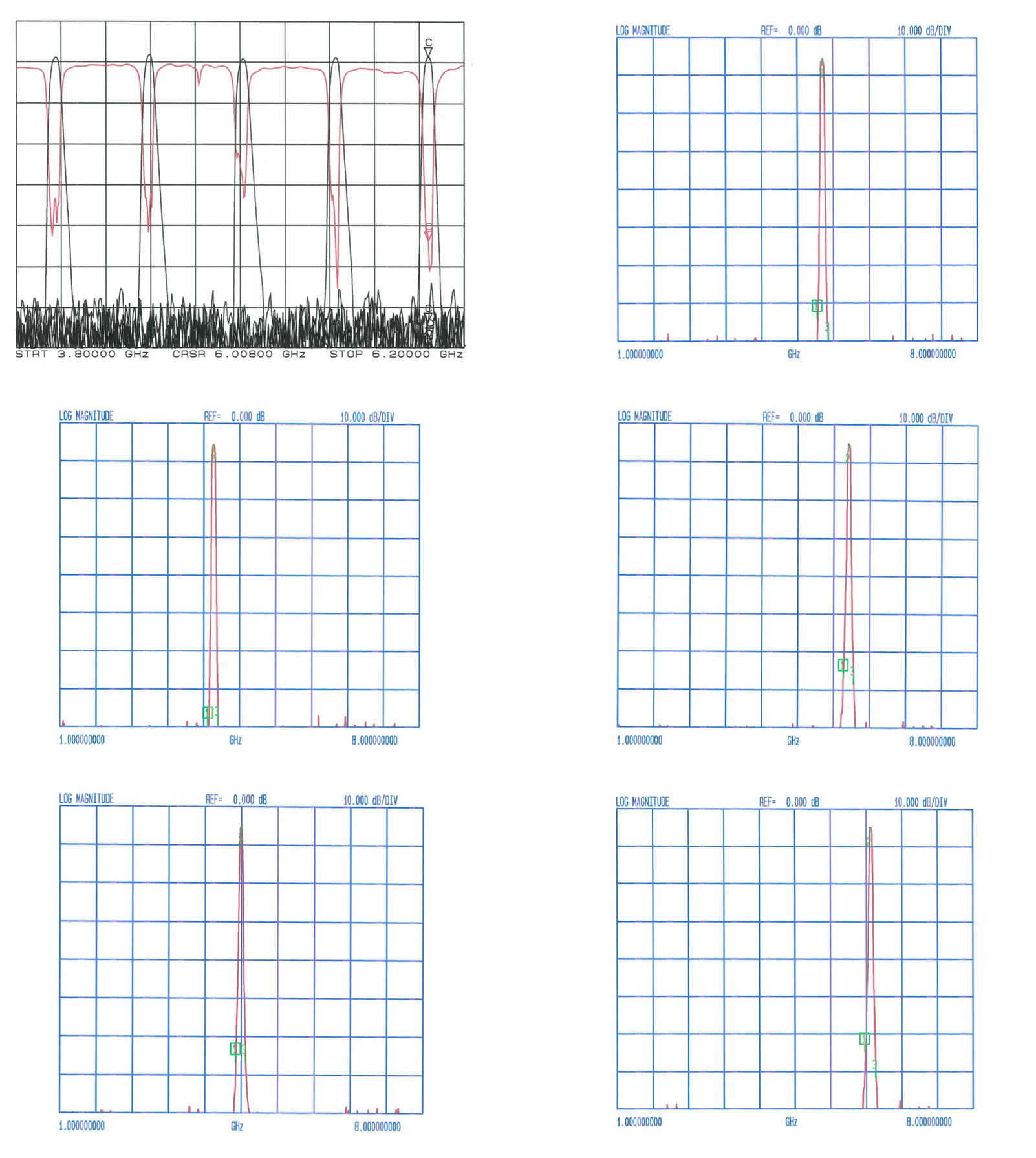

Model Number Passband (GHz) Insertion Loss (max) (dB) Lower Stopband (min) (dB) Upper Stopband (min) (dB) VSWR (max) Size Package Select Product
A65-MH660 3.2 - 5.8
8.65 - 14.3
1.5
1.5
40 ≤ 2 GHz
50 ≤ 5.8 GHz
40 ≥ 6.4 GHz
45 ≥ 17.4 GHz
1.8:1
1.8:1
Figure 1 & 2 D, S
D, S
A65-MH661 5.15 - 9.3
13.7 - 18.0
1.5
1.5
40 ≤ 12.0 GHz
25 ≤ 18.7 GHz
50 ≥ 10.4 GHz
25 ≥ 18.7 GHz
1.6:1
1.6:1
Figure 3 & 4 D, S
D, S
A65-MH670 10.75 - 11.25
13.75 - 13.25
15.75 - 16.25
2.7
2.7
2.7
60 ≤ 10.0 GHz
60 ≤ 13.0 GHz
60 ≤ 15.0 GHz
60 ≥ 12.0 GHz
60 ≥ 15.0 GHz
60 ≥ 17.0 GHz
1.6:1
1.6:1
1.6:1
Figure 5 & 6 D, S
D, S
D, S
A65-MH680 4.27 - 4.33
4.77 - 4.83
5.27 - 5.33
5.77 - 5.83
4.0
4.0
4.0
4.0
60 ≤ 4.2 GHz
60 ≤ 4.7 GHz
60 ≤ 5.2 GHz
60 ≤ 5.7 GHz
60 ≥ 4.4 GHz
60 ≥ 4.9 GHz
60 ≥ 5.4 GHz
60 ≥ 5.9 GHz
1.6:1
1.6:1
1.6:1
1.6:1
Figure 7 & 8 D, S
D, S
D, S
D, S
A65-MH681 3.97 - 4.03
4.47 - 4.53
5.07 - 5.13
5.47 - 5.53
5.97 - 6.03
4.5
4.5
4.5
4.5
4.5
60 ≤ 3.9 GHz
60 ≤ 4.4 GHz
60 ≤ 4.9 GHz
60 ≤ 5.4 GHz
60 ≤ 5.9 GHz
60 ≥ 4.1 GHz
60 ≥ 4.6 GHz
60 ≥ 5.1 GHz
60 ≥ 5.6 GHz
60 ≥ 6.1 GHz
1.6:1
1.6:1
1.6:1
1.6:1
1.6:1
Figure 9 & 10 D, S
D, S
D, S
D, S
D, S
Note: You can select different models and submit inquiry or custom quote request with help of different options available at bottom of page.

AKON, Inc. and it’s affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
ll products are measured in 50-ohm system, over a temperature Range of -54° to +85° C.
Note: Packaging Options: D = Drop-In, S = SMP (Model Number Example: A65-MH6XXD

Customer Program

JPL - MIRO (Complex Integrated Microwave Assembly)
JPL - MLS (complex Converter Assembly)
AEG - Germany FL-1800 (Electronic Counter Measure)
CSIST - Shipboard Radar Update
Raytheon - SLQ - 32
BAE/Sanders - USM - 406C (Test Set)
BAE/Sanders - USM - 464 (Test Set)
US Navy - SAR - Synthetic Aperture Radar TR Modules
NAVSEA/Envisioneering - SEAPORT-e Program (Tuners)
Lockheed Martin - AEGIS
SEARAM - Rolling Airframe Missile
Brazilian Navy
DSTO Australia
Anaren - Canadian F18
Ford - HARM Missile Seeker
ITT - ASPJ (Airborne Self Protect Jammer) IDECM (Integrated Digital Electronic Counter)
Japan - FSX, Several RWR (Radar Warning Receiver)
BAE/Loral - ALR - 56C (F15 Fighter) RWR
BAE/Loral - ALR - 56M (F16 Fighter) RWR
BAE/Loral - ALQ - 131 (Pod Mounted Jammer)
Turkish F-16 - Front End Converters SPEWS II
DRS - Euro Fighter Test Set
BAE/Loral - ALR - 56V - F15 (RWR Update)
Northrop Grumman - JSTARS
Northrop Grumman - ALQ - 188 (Electronic Attack Training Pod)
Raytheon - ALQ - 142 (LAMPS Helicopter)
Electronica (Italy)
Government of India - Aircraft Radar
DSTO (Australia)
